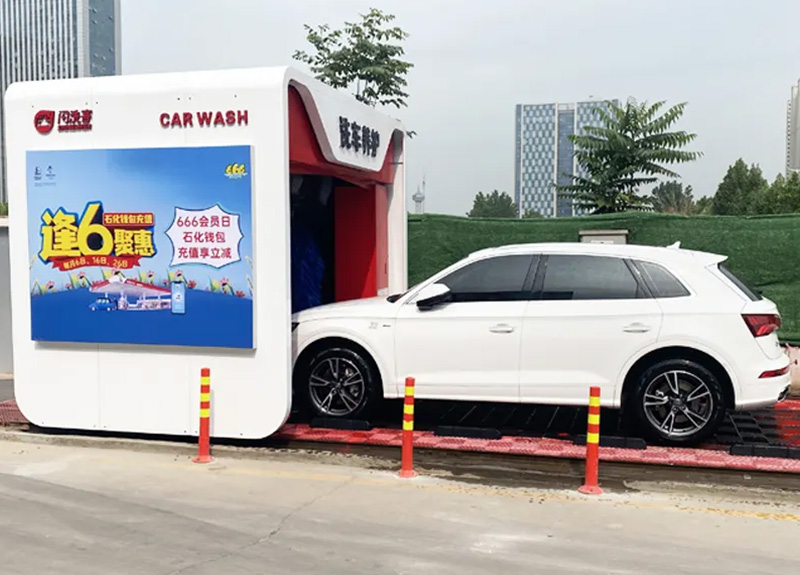

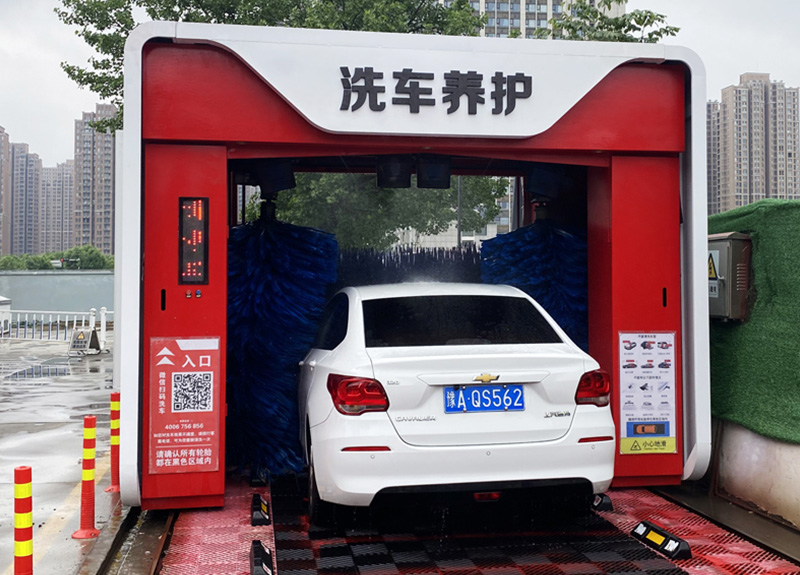

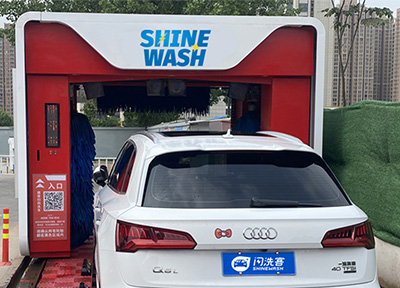

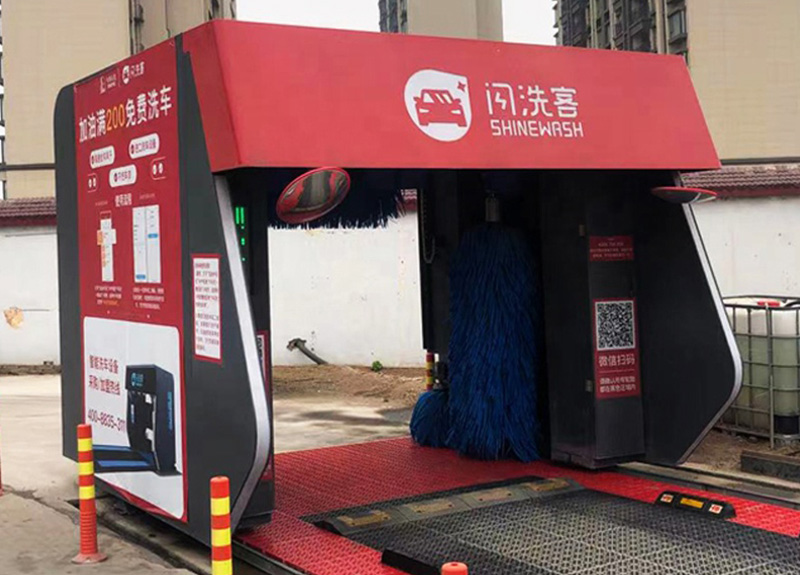

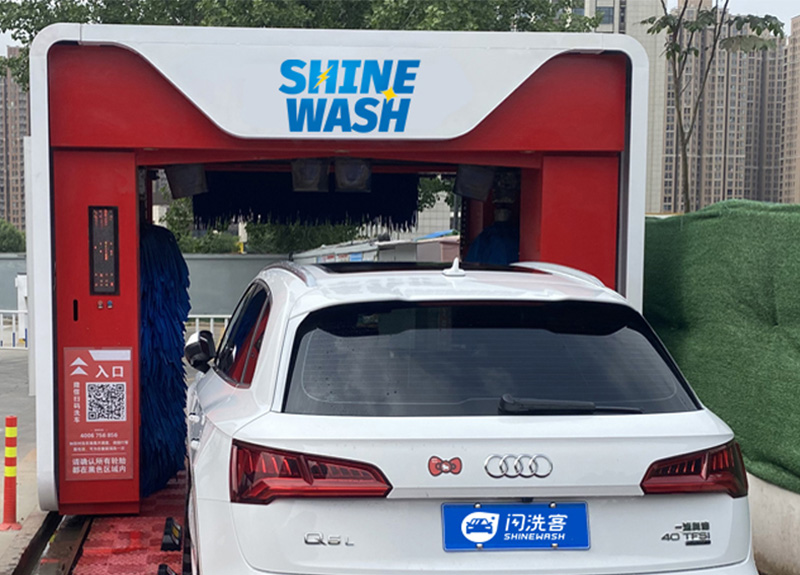

S3 Rollover 5 Brush Car Wash Machine

      • Model: S3
      • Machine Size (m): L2.85*W3.85*H3
      • Max. Car Size (m): L6*W2.1*H2.1
      • Standard Installation Size (m): L11*W3.7*H3.1
      • Wash Time: 2.5-5min/Car
      • Suitable Cars: Car / Jeep / minivan
        with less than 7 seats
      • Water Consumption: 60-80L/Car
      • Top Brush: 1
      • Big Vertical Brush: 2
      • Side Brush: 2

products+

Short Introduction of S3 Rollover 5 Brush Car Wash Machine



S3 rollover 5 brush car wash machine is an automated system where the vehicle remains stationary while a large, moving frame, or "gantry," moves back and forth over it to clean the exterior. This machine typically uses a combination of brushes, water jets, soap, and sometimes high-pressure air for drying. It's popular for its compact design, making it ideal for car wash businesses with limited space. Rollover systems are efficient, cost-effective, and provide a thorough clean without requiring much manual effort.



Specification



Model S3 Shampoo & Water Wax
Consumption
10-30ML/Car
Machine Size (m) L2.85*W3.85*H3 Electricity Consumption 0.6KWH/Car
Max. Car Size (m) L6*W2.1*H2.1 Power Supply 380V 50HZ 20KVA
Standard Installation
Size (m)
L11*W3.7*H3.1 Power 25KW
Suitable Cars Car / Jeep / minivan
with less than 7 seats
Top Brush
Wash Time 2.5-5min/Car Big Vertical Brush
Water Consumption 60-80L/Car Side Brush

Product Advantages:



About the material and brand of the product, the main frame is hot-galvanized steel plate, the PLC is the Mitsubishi brand, the touch screen is Taiwan, the photoelectric sensor is the German PEPDERL+FUCHS, the proximity switch, AC contactor, thermal protectors, relays and terminals are imported from Germany, waterproof motor and motor reducer are tested and selected the most high-quality and durable brand.



Service life can reach more than 15 years. Current sensing can adjust the brush system according to the shape of the car body to wash the car, in winter we have an anti-freeze system. About the brush we use imported special foam material, solid, no holes, no damage to car paint, no mud, not easy to wrap, no water absorption, anti-aging, wear resistance, the service life of the brush is 5 times that of the ordinary brush, can wash 500,000-600,000 vehicles, the late brush will appear dull color phenomenon, but will not wear.



The failure rate of the equipment is less than 1 in 10,000, and 90% of failures can be resolved remotely by the flash washer system within 3 minutes. The rollover car wash machine can be unattended for 24 hours.

Rollover 5 Brush Car Wash Machine Washing Mode



gantry-car-washing-machine-wash-mode



Pre-sale and After-sale Services

Pre-sale Service

If our customers do not have any idea, Shinewash can provide free products proposals. One of our most prominent advantages is we provide free car wash machine customization. The customization includes logo, payment software, wash procedures and appearance. If the customers only have a site and don’t know what car wash machines to choose, Shinewash provides construction draw design.



After-sale Service

About the installation, Shinewash provides free remote guide installation services. Usually customers will install the car wash machine successfully. If it’s not enough, we can provide engineer on-site installation, maintenance, repairing and training for 6 months. We also have Remote Fault Detection, it can analyze failure causes and solutions in seconds. What’s more, Shinewash provides 3 years warranty and free parts. Last, buy our car wash machine, you will enjoy lifetime technical support.

Video of S3 Rollover 5 Brush Car Wash Machine

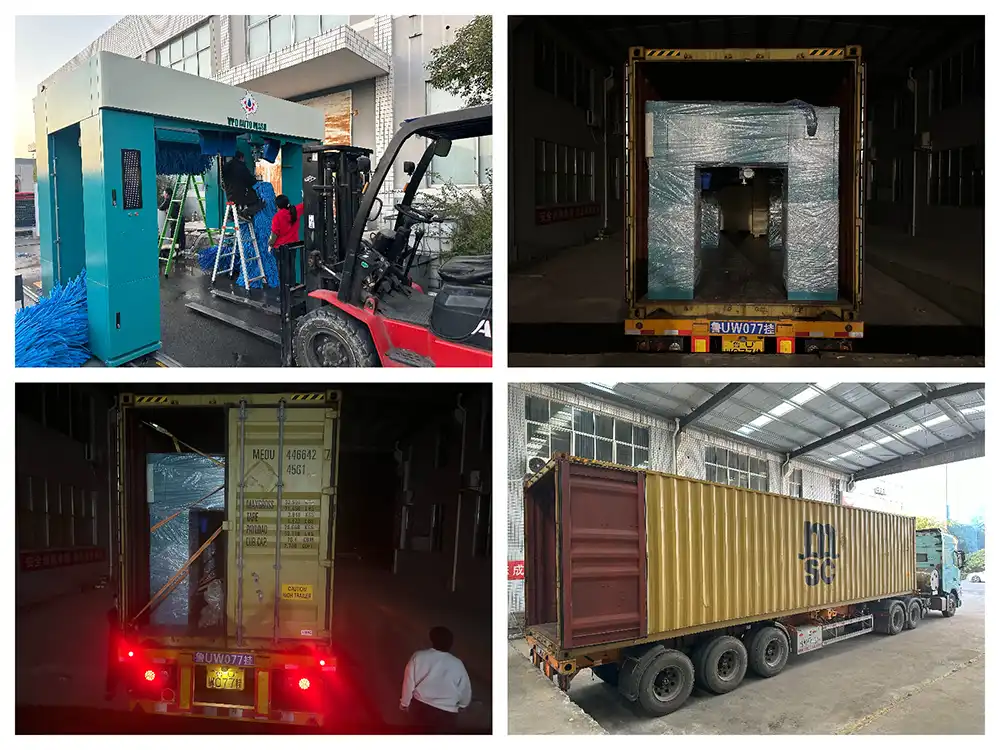

Shiping Photos
