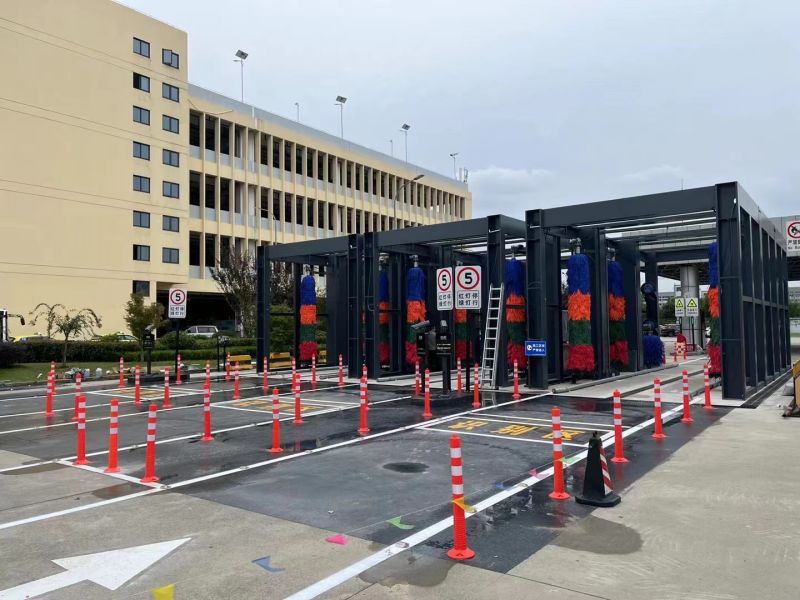

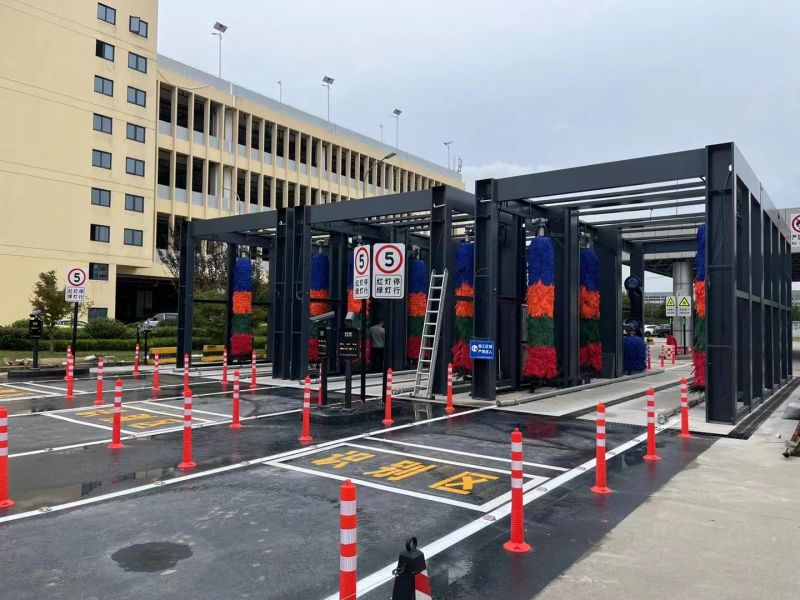

Bus car wash machine T6

Description of main functions

  • With fully automatic cleaning of the front and rear, top and both outer surfaces and automatic mirror avoidance.
  • With a combination of automatic cleaning and manual control for cleaning and safe avoidance of appendages on vehicles.
  • With manual and point-action operation of each workstation.
  • With perfect system protection, the system is able to shut down in case of a fault, with alarm and fault content display at the same time.
  • Features selective water washing and washing with detergent.
  • The water used to wash the vehicle is recycled to reduce the amount of water used in the car wash.(Note: water recycling option)
  • The equipment is equipped with perfect fault self-diagnostic functions, which provide comprehensive monitoring and display of the system status and alarm, and make correct judgement on the fault area and fault type.
  • The equipment is equipped with comprehensive safety protection features.

products+

Bus car wash machine T6

The bus washer is designed for trucks, buses, large container trucks, construction vehicles and other vehicles with intelligent and automatic vehicle washing functions. It is suitable for bus and passenger systems, logistics systems and various vans. The equipment is controlled by an electronic control (French Schneider PLC programmable controller) system for the automatic operation of the whole set of equipment. The machine can realize the continuous washing, brushing, air-drying and reuse of wastewater (optional) of vehicles in an efficient and fast way.

bus truck wash machine

Electrical control and operating workstations

The fully electromechanical control system is installed in the electrical control cabinet of the frame and realises the automatic control of the car wash by means of an electrically operated workbench. The core of the control system is the programmable controller, which is detected by photoelectric sensors and proximity switches and controlled by current sensors to realise the automatic program for brush sets, water spraying and walking. The programmable controller and the main electrical components such as photoelectric sensor, photoelectric switch and current sensor are imported international famous brands to ensure the reliability of the whole machine performance.

微信图片_202208041739421

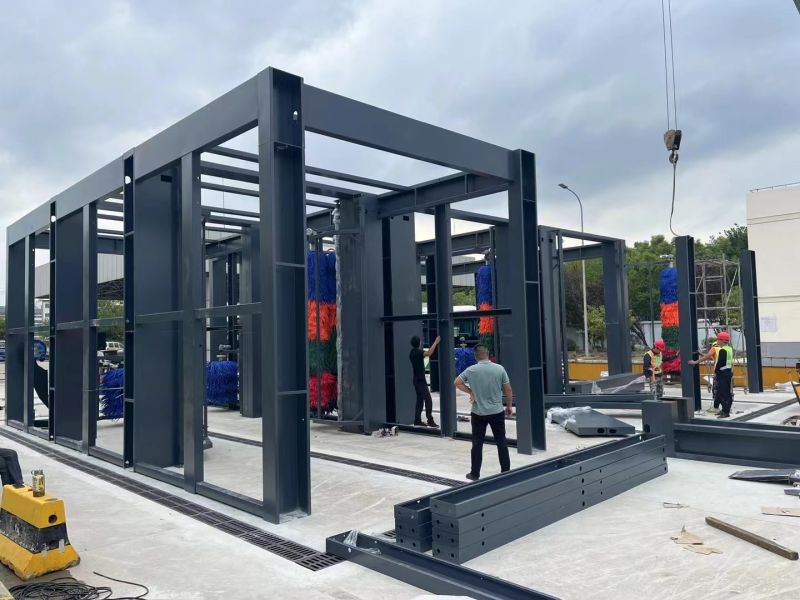

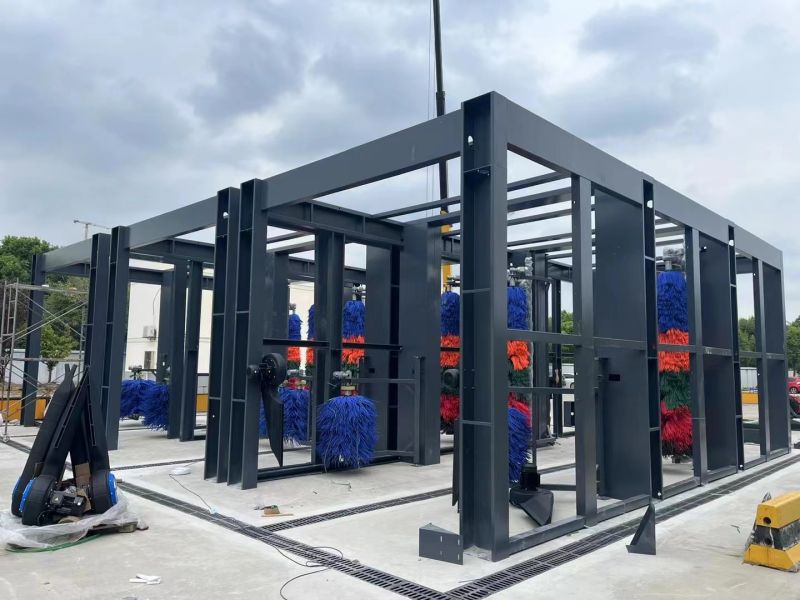

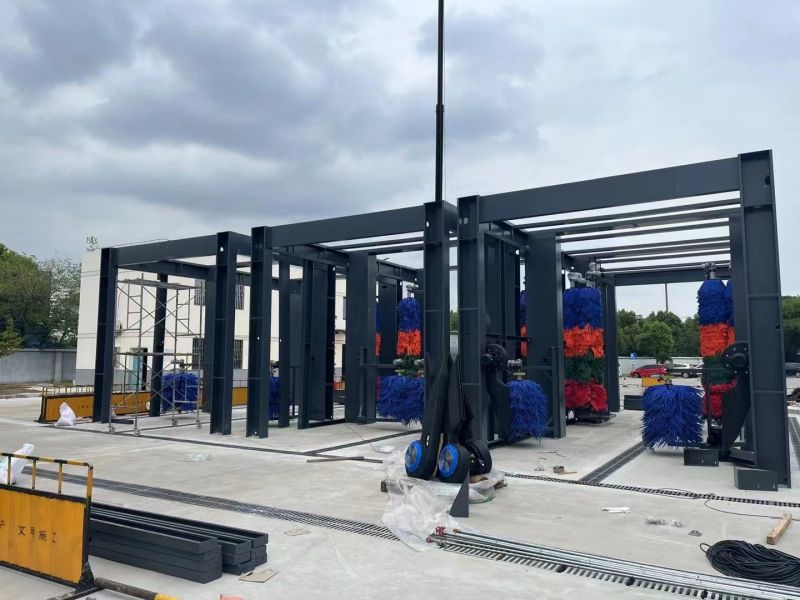

Complete machine frame

The frame of the car wash is made of steel with sandblasting, zinc spraying and plastic spraying treatment. The outside of the frame is covered with stainless steel plates and consists of four parts: left and right columns, base and top frame.

Truck-car-wash-6-brushes

Cleaning brushes

  • Car wash configuration with combined cleaning brush.
  • Six brushes: four large standing brushes and two skirt brushes to clean the front, sides and rear of the vehicle.
  • The new foam bristles used by the company are solid, non-porous, soft and safe, non-damaging to the paintwork, non-muddy, non-absorbent, non-tangle, anti-ageing and wear-resistant. The brush tubes are made of special aluminium alloy, which is lightweight and durable.

微信图片_2022080417394223

Air-drying Systems

The SHINEWASH T6 fixed air drying system, with high power fixed side air x 6, with a single machine power of 5.5kw, is safer and more powerful to blow dry the surface of the car at close range, with an air drying effect of about 90%.

Fan-drying-

Water Retention Facilities

The structural frame of the car wash is equipped with a water barrier, which is made of a stainless steel skeleton with a new type of resistant board, which is both beautiful and sturdy.

Water Supply System

The water supply unit consists of a fresh water and water recycling system, including pumps, piping, valves etc.

Smart-Water-Circulation-System


Channel Truck / Bus Washers Main Technical Parameters

Item Specification
Applicable Models Various types of bus vehicles
Car Wash Size Length: UnlimitedWidth: ≤ 3mHeight: ≤ 4m
Machine Size Length: 18mWidth: 5mHeight: 5.3m
Equipment Power 45KW
Brush Configuration Dali Brushes: 4 pcsSkirt Brushes: 2 pcs
Air-Drying System 6 × 5.5KW fans
Cleaning Capacity 2 to 3 minutes per vehicle
Power Supply 380V / 50Hz
Power Consumption Approx. 0.5 kWh per vehicle
Water Consumption 150L – 200L per vehicle
Air Pressure 0.7 MPa
Cleaning Options Normal wash, Detergent
Operation Modes Automatic control, Manual control
Wastewater Recycling (Optional) Power: 1.5KWRecovery Rate: 90%Water Use: 10L – 15L/vehicle
Working Temperature 0°C – 50°C
Material 50mm hot-dip galvanized steel

Video


FAQ

How does it save water while washing large buses?

An optional MDS-300 water recycling system recovers 90% of wastewater, reducing consumption to 10–15L/vehicle, paired with high-pressure nozzles for optimal cleaning.

What safety features protect vehicles during washing?

The system includes emergency stop protection, fault self-diagnostics1, and foam brushes with non-abrasive EVA bristles to prevent paint damage.

What makes the T6 suitable for heavy-duty vehicles?

Its 4.5m-wide x 5.3m-high frame accommodates buses, trucks, and construction vehicles, with hot-dip galvanized steel resisting corrosion for 15+ years.
