Rollover Bus Car Wash Machine R3

Main features:
Computerized automatic control system, high degree of automation,
Complete functions, easy operation, beautiful appearance, energy saving and environmental protection, long service life,
Low cost of car washing, low maintenance cost, strong anti-embroidery performance and good reliability.
Automatic induction spraying system, automatic siphon foam system, automatic current control system, automatic detection and alarm system, automatic model identification,
Emergency stop protection device, sub-action technology, remote control, winter anti-freeze technology, intelligent

products+

Rollover Bus Car Wash Machine R3

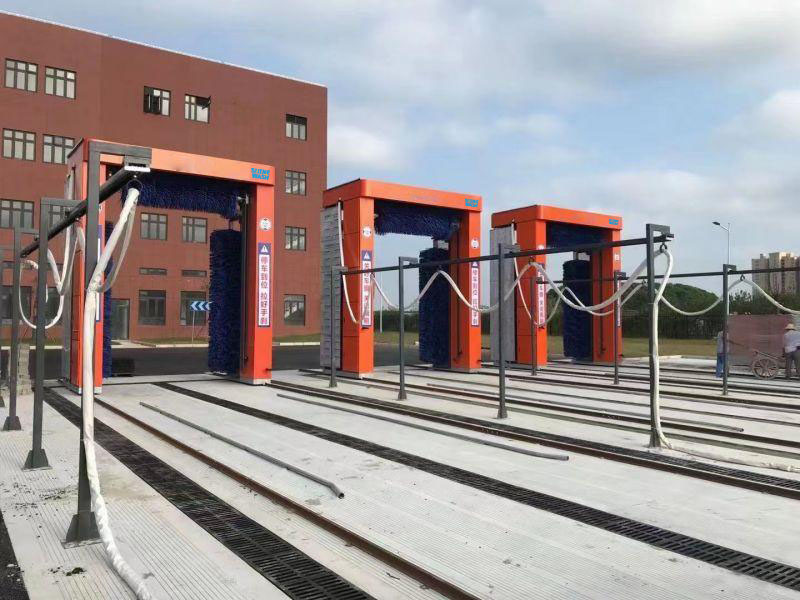

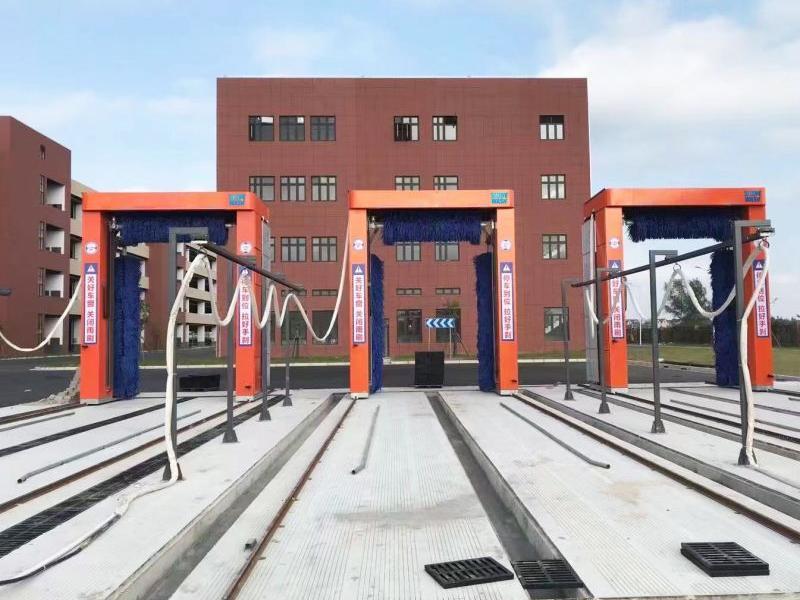

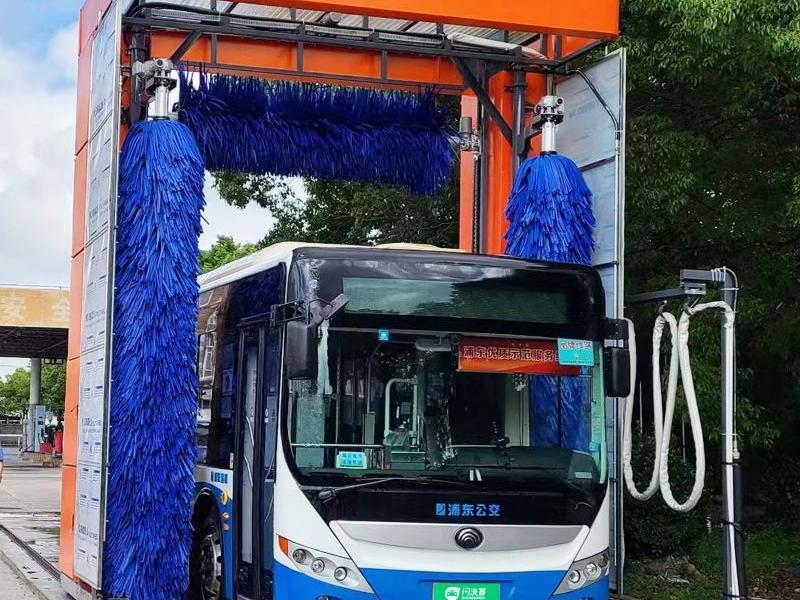

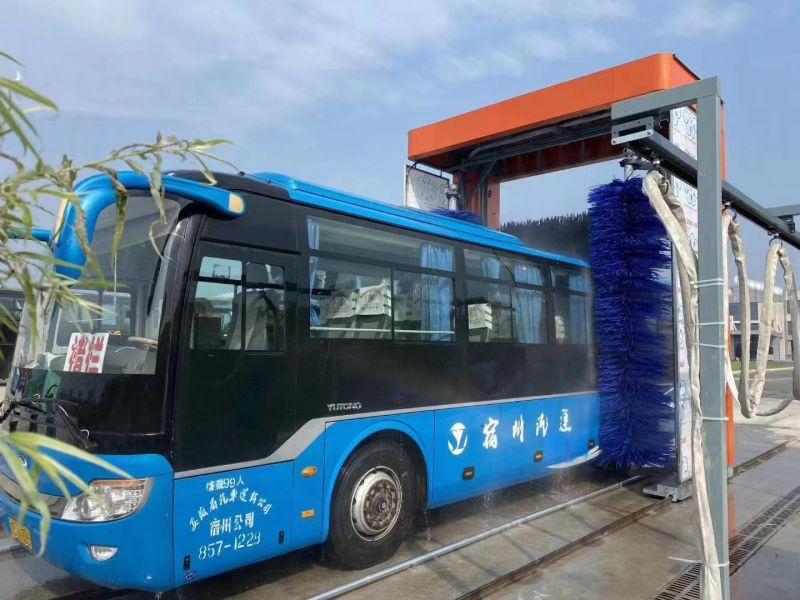

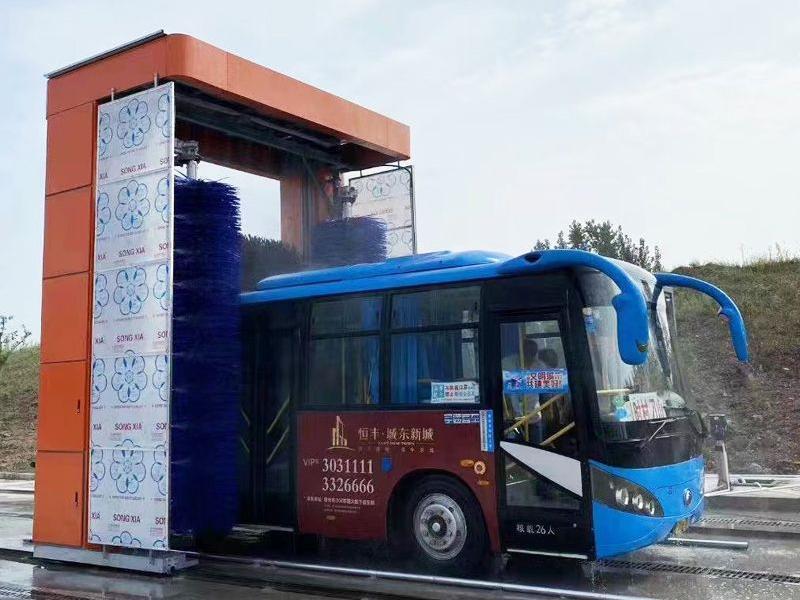

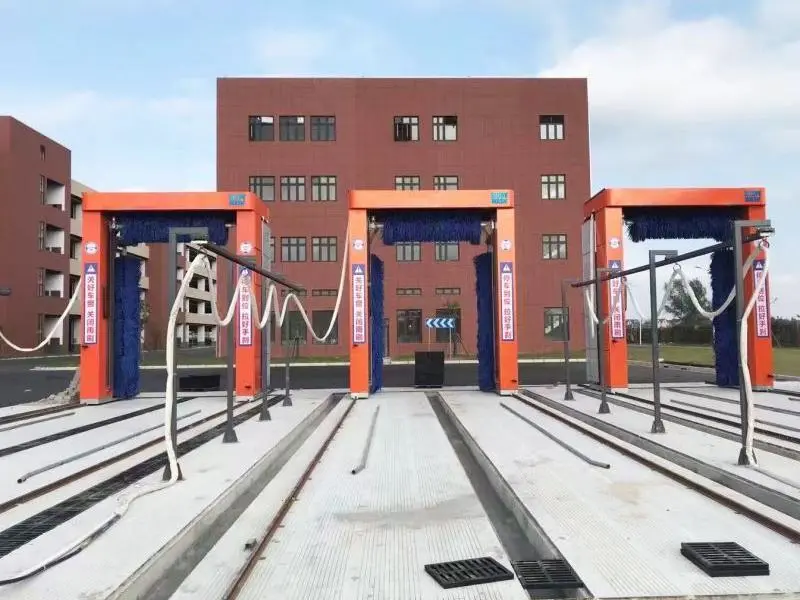

SHINEWASH fully automatic computerised car washing equipment is an all-in-one reciprocating car wash designed specifically for washing bus vehicles, large bus vehicles and large container vehicles. The whole process uses Mitsubishi computer (PLC) as the control centre, the brushes automatically sense the force generated by the bristles on the body, thus controlling the distance between the brushes and the body, never hurting the car, cleaning the body surface in all directions, leaving no dead ends. It is widely used in major bus systems and passenger stations

Introduction

Gantry structure:

4.5mm, partially up to 8mm plates are laser cut to accurately position the components, then assembled through mortise and tenon structure, hot-dip galvanized with Taiwan Dahua paint.

Top brush part (1 piece):

consists of the rotating device of the top brush and the lifting device, the lifting device is driven by the wheels on both sides by the lifting motor, and the wheels are wound with nylon belts to connect the top brush part for upward and downward movement.

Large vertical brush parts (2):

consists of a pair of large vertical brush rotating device, driven by the telescopic action of the cylinder, the large vertical brush for left and right movement, relying on the brush strip with the surface of the car into the resistance to increase and reduce the implementation of the large vertical brush left, right stretch and close together.

Travel system:

mounted on the base on both sides, the sprockets and travel wheels are driven by a reduction drive system to make the car wash travel along the rails.

Electric control system:

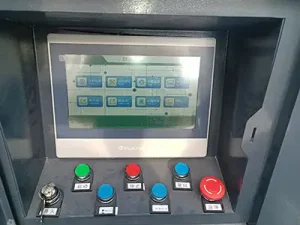

installed in the electric control cabinet of the frame, through the computer touch screen to achieve automatic control of the car wash machine, the core of the control system is the programmable controller, through the photoelectric sensor, proximity switch detection, current sensor control to achieve the control of the top brush, large vertical brush and walking.

Mobile line conveyor arm:

water, circuit and air paths are protected by tensile insulation, resistant to wear and tear, with a 100% safety factor.



Reciprocating bus wash parameters

Applicable models All types of buses and bus vehicles
Car wash size Length ≤ unlimited x width ≤ 3 x height ≤ 4.5
Machine size 2500mm (L) x 4500mm (W) x 5500mm (H)
Mounting dimensions 18000mm (L) x 6500mm (W) x 5700mm (H)
Installed capacity 10KW
Voltage 380V/50HZ three-phase five-wire
Number of brushes One top brush, two large standing brushes
Average water consumption 150L-200L/vehicle
Car wash time Gantry reciprocating 3 min - 5 min per vehicle
Compressed air pressure 0.8Mpa
Electricity consumption 0.5 degrees/vehicle
Control systems Programmable program controller, travel system, frequency converter commissioning control.
Air-drying configuration None
Car wash options Floor track gantry reciprocating. Dual control system with panel and computer
Manufacturing materials Overall equipment: plate structure.         Panels: hot-dip galvanised plastic sprayed or baked enamel.
MDS-300 Sewage Recycling Equipment
Applicable models Various types of bus and bus vehicles
Power consumption 1.5KW
Effluent recovery rate Recovery rate 90%, 10L-15L/ single bus water consumption
Operating temperature 0-50°C
Sewage inlet pipe diameter Galvanised 50mm
Water pumps Vertical high pressure stainless steel centrifugal pumps
