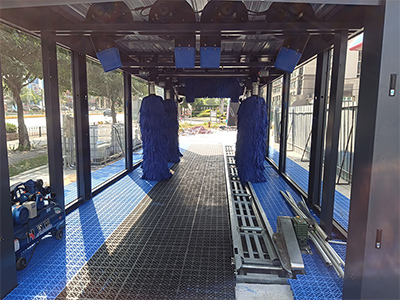

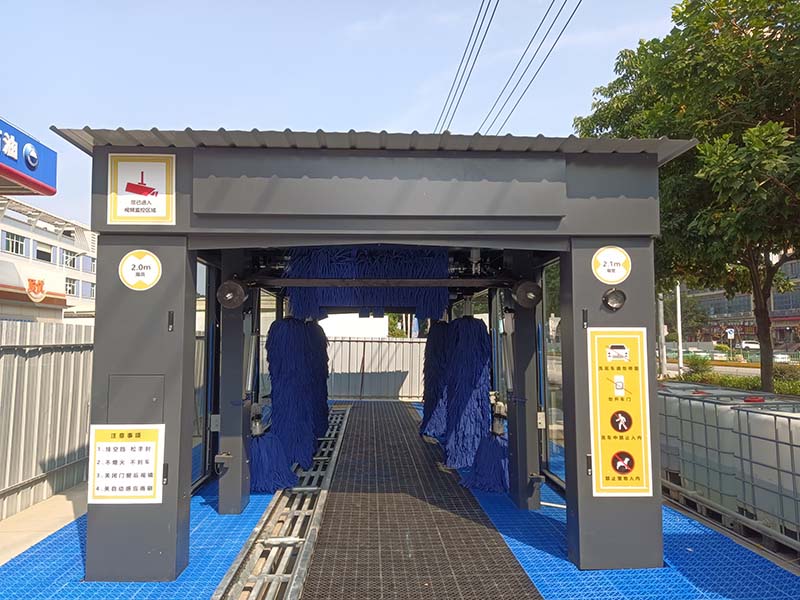

Q9 Tunnel Car Wash Machine
Features:
1. Frequency conversion speed regulation car wash control system
2. High-definition touch screen operation interface, convenient man-machine dialogue
3. The main body is made of 3mm galvanized steel sheet, with long service life
4. With three-in-one maintenance function of foam, water wax and coating
5. Imported photoelectric detection to ensure the safety and stability of the equipment
6. Manual antifreeze device
products+
Specification:
| Product | Tunnel-type 9 Brush Car Wash Machine |
| Model | Q9 |
| Machine Size (m) | L12.5*W4*H3 |
| Installation Size (m) | L24×W4.5×H3.2 |
| Washing Size (m) | L≤unlimited*W≤2.3*H≤2.1 |
| Moving Speed | frequency control |
| Power | 21KW |
| Voltage | 380V 50Hz |
| Compressed Air Supply | 0.75~0.9Mpa air flow rate≥0.6m^3/min |
| Water Supply | DN25mm water flow rate≥200L/min |
| Water Consumption | 80-150L/car |
| Electricity Consumption | 0.6KWH/Car |
| Shampoo Consumption | 7ML/Car |
| Water Wax Consumption | 12ML/Car |
| Wash Cost | Approx. 1.5 yuan/car |
| Top Brush | 1 |
| Big Vertical Brush | 4 |
| Skirt Brush | 4 |
| *The above parameters are typical values and can be adjusted according to actual project requirements. | |
Function Introduction
1. Human-machine interface: intelligent operation, unattended, this is the future choice
Function: touch screen operation, man-machine interface
Features: Independent operating platform, made of plastic mold, sunscreen and waterproof, with 14-inch touch screen, support credit card, coin and APP payment.
2. Guide car forward: correct guide and protect the tires!
Function: touch screen operation, man-machine interface
Features: Guidance and correction function to guide the forward direction of the cars
3. Top brush cleaning system: the car roof can be cleaned with a single touch!
Function: Foam, clean water spray, cleaning both sides and the bottom of the car.
Features: Using a new generation of foam brush, super soft, does not hurt the car body. The brush can maintain an average pressure on all points of contact with the car body. Under the minimum pressure, the brush can wrap the car body well and achieve the effect of car washing.

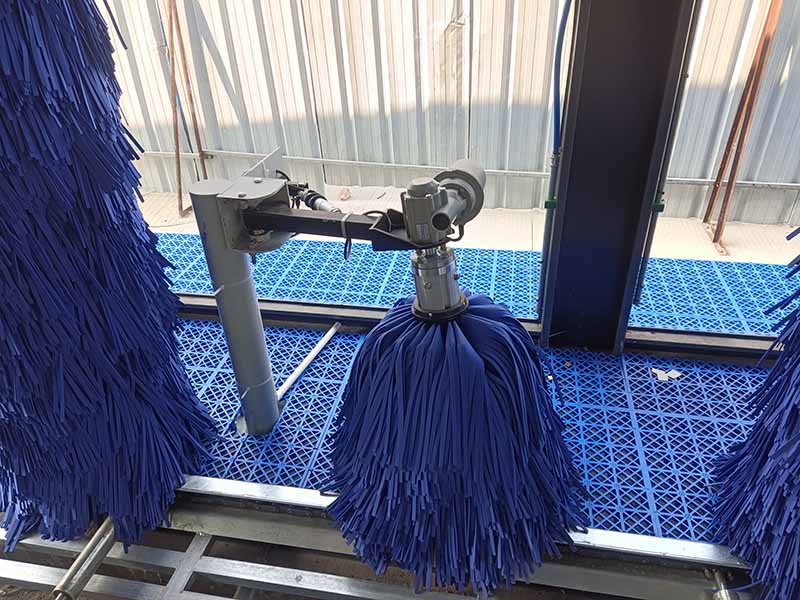

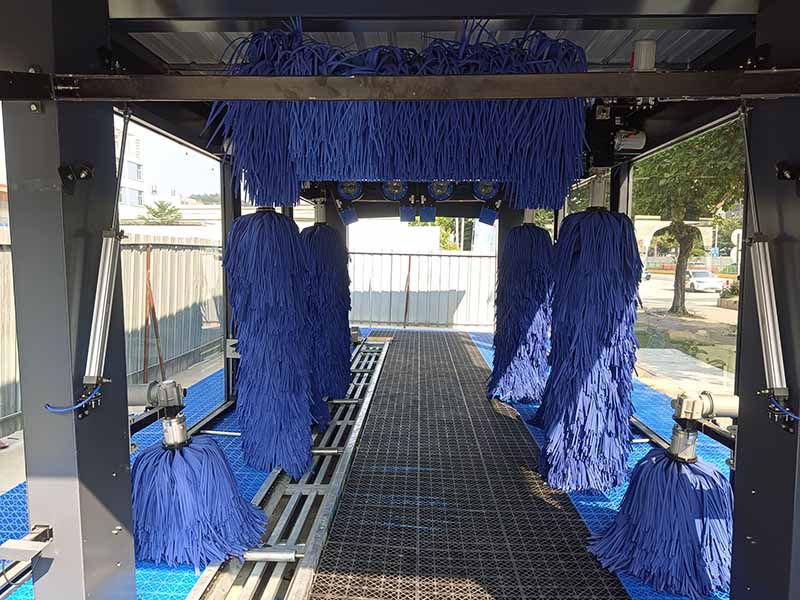

4. Large brush cleaning system: four brushes, can wash the front, rear, and four sides of the car body in a flash
Features: four-brush surrounding cleaning, offside brushing of the front and rear of the car, leaving no dead ends, the rearview mirror can be automatically avoided during side washing, and the cylinder pressure sensing principle is used according to the shape of the body to maintain the proper pressure of the brushes to ensure the washing is operated under a stable and gentle state.
5. Rinsing and wax coating system: apply a layer of protect film to the car and give it a new look
Function: automatic spray foam, automatic rinsing and wax coating
Features: Effectively reduce the surface tension and dynamic contact angle of the car paint. After using this product, the water droplets on the car body will quickly roll off, reducing the air-drying time. The wax product is highly concentrated and can be used in low temperature environments.

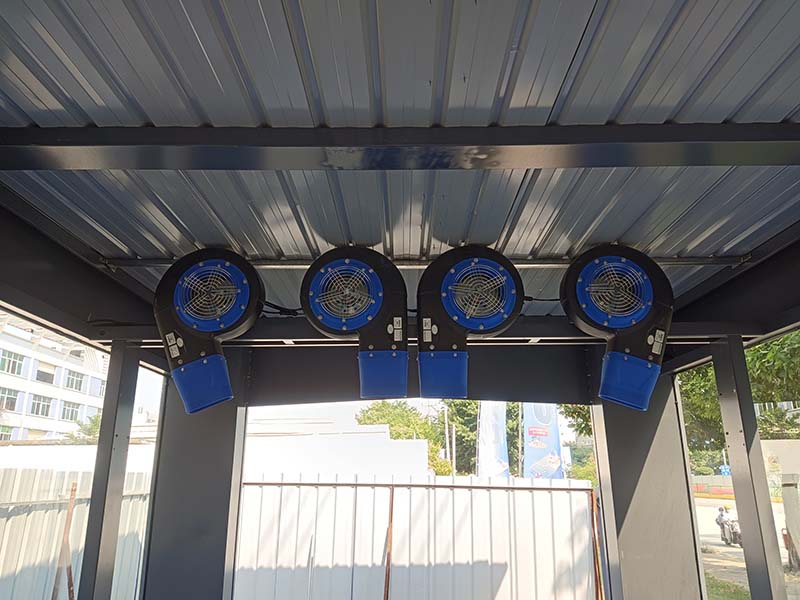

6. Profiling air-drying system: profiling air-drying close-up and strong drying of the car body surface
Function: automatic lifting, close-range strong drying of the the car body surface
Features: The motors and reducers are Italian SITI brand. Generally, only two 3.5KW fans used to achieve the drying effect, energy saving.
